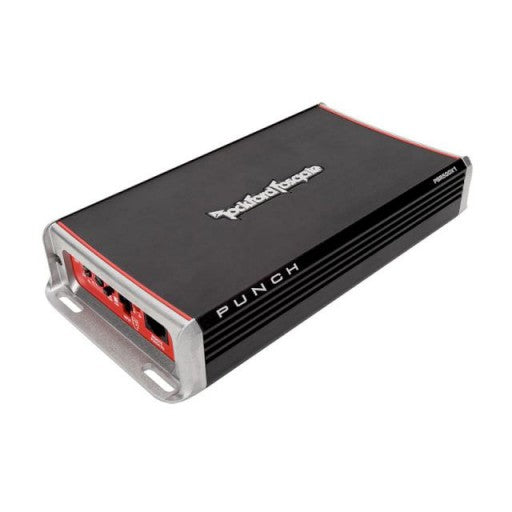

Rockford Fosgate Punch PBR500X1 - Mono Amplifier


Price:
£369.99

Description

The PBR500X1 is a 500 Watt amplifier with Boosted Rail Technology, allowing it to be compact and efficient while providing big power. This amp is great for smaller stealth installations, motorcycles and recreational vehicles.

  • 12dB/octave Butterworth crossover
  • MOSFET output stage
  • High level inputs
  • Ultra compact chassis
  • Variable 4-6 volt hi level DC offset voltage input turn-on control
  • Number of Channels: 1
  • Rated Power (RMS Continuous Power): 170 Watts x 1 @ 4-Ohm
  • 300 Watts x 1 @ 2-Ohm
  • 500 Watts x 1 @ 1-Ohm
  • Total Power (Sum of Rated Power): 500 Watts
  • Bridgeable: No
  • Efficiency (average):     75% @ 4-Ohm
  • 75% @ 2-Ohm
  • 65% @ 1-Ohm
  • Crossover Controls: 35Hz - 250Hz Low Pass @ 12dB/Octave Butterworth
  • Signal Input: High/Low Input Switch
  • High/Low Level Input: 4-Pin Harness
  • High-Level Sensitivity: Variable DC offset sensitivity
  • Power Input Connector: Block Harness
  • Power Wire Gauge: 10 AWG
  • Speaker Output Connector: 4-Pin Harness
  • Speaker Wire Gauge: Harness 12 AWG
  • Heat Sink Type: Extruded aluminium
  • Cooling: Convection
  • Remote Controls: Optional PEQ provides 0dB to +18dB @ 45Hz
  • Visual Indicators: Power/Protect, BRT (Boost)
  • Circuit Topology Class: Class-BR
  • Frequency Response: 20Hz-250Hz +/-3dB
  • Dimensions (HxWxL): 1.53" x 4.25" x 8.2"
  • 3.90cm x 17.2cm x 20.82cm)
