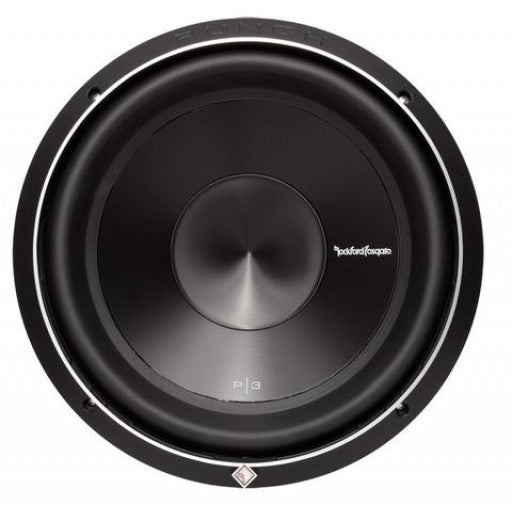

Rockford Fosgate Punch Series P3D4-15 - 15" P3 4-Ohm DVC Subwoofer
Tax included.
Anodized aluminum cone and dustcap
Custom 10-AWG nickel plated push terminals
Diamond cut cast aluminum trim ring with optional grille
Dual linear spider with embedded 16 AWG tinsel leads
Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Protective PVC textured magnet cover
StampCast basket with integrated spider venting
Size: 15"
Nominal Impedance: Dual 4-Ohm
Power Handling: 600 Watts RMS / 1200 Watts Max
Voice Coil Diameter: 2.5" (65.5 mm)
Magnet Weight: 96 oz. 2.73 kg.
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 22.4
Re (Ohms): 6.40
Le (mH): 6.45
Qms: 4.90
Qes: 0.64
Qts: 0.57
Vas (Liters): 155.8
Sd (cm2): 894
SPL (dB @ 1w/1m): 86
Xmax (mm): 15.9
Woofer Displacement: 0.247 cu. ft. (7 Liters)
Cutout Diameter: 13.94 in. (353 mm)
Mounting Depth: 7.58 in. (192.5 mm)
Shipping Weight: 23.3 Lbs. (10.56 kg)
