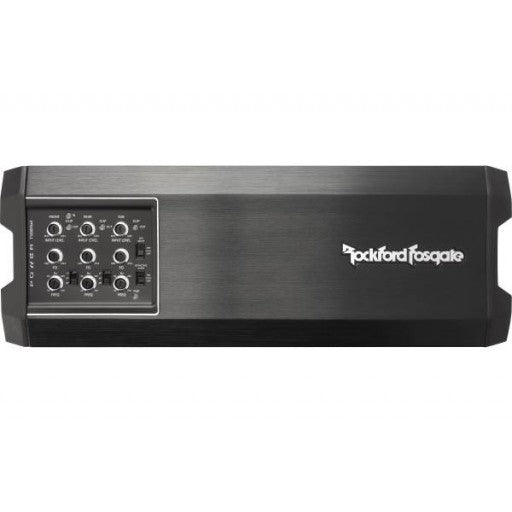

Rockford Fosgate T1000X5ad - Power 1,000 Watt Class-ad 5-Channel Amplifier

  • Sale
  • Regular price £719.95
Tax included.


The T1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel.

Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs.

Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. The Amplifier is also compatible with our PLC2 level remote control allowing remote output level control of the sub channel.

  • CEA-2006 Compliant: [CEA-2006 Guidelines] CEA-2006 Power Rating
  • 100W x 4 + 400W x 1 @ 4Ω
  • ≤1.0% THD+N
  • Number of Channels: 5
  • Rated Power
  • (RMS Continuous Power): 100 Watts x 4 @ 4-Ohm + 400 x 1 @ 4-Ohm
  • 100 Watts x 4 @ 2-Ohm + 600 x 1 @ 2-Ohm
  • N/A + 600 Watts x 1 @ 1-Ohm
  • 200 Watts x 2 @ 4-Ohms Bridged + N/A
  • Total Power
  • (Sum of Rated Power): 1000 Watts
  • Bridgeable:    Yes
  • Front Terminals: Left (+) Right (-)
  • Rear Terminals: Left (+) Right (-)
  • Frequency Response: 20Hz - 20kHz
  • Efficiency (average):            >85%
  • Total Harmonic Distortion (THD+Noise):   4 Ch 4-Ohm: <1.0%
  • 4 Ch 2-Ohm: <1.0%
  • Sub 4-Ohm <1.0%
  • Sub 2-Ohm <1.0%
  • Sub 1-Ohm <1.0%
  • Crossover Controls: High-Pass: 50Hz - 250Hz @ 12dB/Octave
  • Low-Pass: 50Hz - 250Hz @ 12dB/Octave
  • Subwoofer: 50Hz - 250Hz @ 12dB/Octave
  • Infrasonic: 28Hz @ 12dB/Octave
  • Butterworth Alignment on all filters
  • Tone Controls: Front/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode)
  • Front/Rear: 0 to +18 dB @ 45Hz (LP mode)
  • Sub: 0 to +18 dB @ 45 Hz
  • Input Sensitivity: 150 mV to 12 V
  • Signal Input: Front High/Low Input: 4-Pin harness
  • Rear High/Low Input: 4-Pin harness
  • Sub High/Low Input: 4-Pin harness
  • Sub Input Switch: On/Off
  • (when on, sub signal derived from Front Left input)
  • Signal Output:           —
  • Power Input Connector: Detachable Compression Terminal
  • Power Wire Gauge:   4 AWG
  • Speaker Output Connector:             Front: 4-Pin Harness
  • Rear: 4-Pin Harness
  • Sub: Detachable Compression Terminal
  • Speaker Wire Gauge: Front/Rear: 16 AWG
  • Sub: 10 AWG
  • Heat Sink Type: Dual Extruded Aluminum
  • Cooling: Dual Fan Cooled
  • Remote Controls: Optional PLC2 provides Punch Level Control
  • Visual Indicators: Power: Blue LED
  • Protect: Red LED
  • Input Clip: Red LED3
  • Output Clip: Blue/Violet/Red LED1,2,3
  • LED Color Legend:
  • 1BLUE: <0.5% THD
  • 2VIOLET: 1% THD
  • 3RED: 10%+ THD
  • Circuit Topology Class: Channels 1/2/3/4: Class-AD
  • Sub Channel: Class-BD
  • Recommended Fuse
  • (not included): 100 A
  • Dimensions (H x W x D): 1.6 x 4.3 x 12 (in.)
  • 4.1 x 10.8 x 30.5 (cm)
