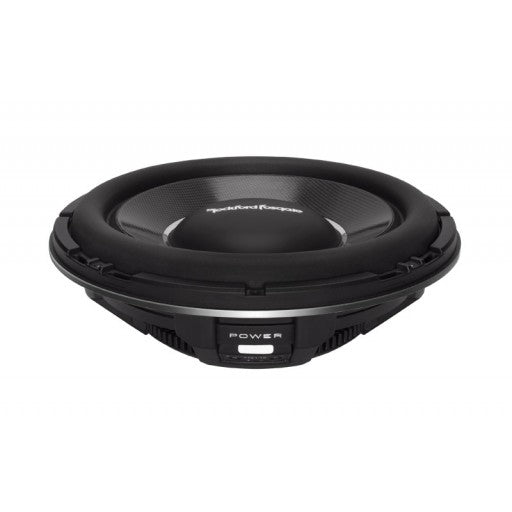

Rockford Fosgate T1S1-12 - 12" Slim Power T1 Single 1-Ohm Subwoofer

  • Sale
  • Regular price £359.95
Tax included.


The Power T1S1-12 is a slimline 12" subwoofer designed for spaces where traditional sized woofers will not fit. Features a single 1-ohm voice coil for simplified wiring configurations.

  • Carbon fiber/PMI/glass fiber cone with aluminum dustcap
  • Injection molded foam surround with VAST™
  • Dual Nomex progressive spiders with integrated lead wires
  • Aluminum diecast frame with integrated heat sink fins
  • Custom insulated push spring 10 AWG terminals
  • Dual wound 2.5" voice coil with interior/exterior windings
  • Encapsulating voice coil to former coupling technology (patent pending)
  • Detachable die cast aluminum trim ring
  • Vented pole piece
  • High temp high energy neodymium motor structure
  • Proprietary split yoke pass thru motor technology (patent pending)
  • Integrated copper cap heat sinking shorting ring (IDHS)
  • Optional grille insert available
  • Optimized for sealed enclosures
  • CEA-2031 Compliant: CEA-2031 Guidelines
  • Size: 12"
  • Nominal Impedance: 1-Ohm
  • Power Handling (Watts RMS): 600 Watts RMS
  • 1200 Watts Max
  • Voice Coil Diameter: 2.98" (75 mm)
  • Magnet Weight (oz):             14.42 oz. (0.41 Kg)
  • Speaker Connector: 10 AWG slot loaded
  • Fs (Hz): 37
  • Re (Ohms):1.7
  • Le (mH): 0.31
  • Qms: 11.22
  • Qes 1.17
  • Qts: 1.06
  • Vas (Liters): 32.4
  • Sd (cm2): 560
  • SPL (dB @ 1w/1m):             84
  • Xmax (mm): 15
  • Woofer Displacement (in): 0.11 cu. ft. (3.12 Liters)
  • Cutout Diameter (in): 11.22 in. (285 mm)
  • Mounting Depth (in): 3.01 in. (76.5 mm)
