Rockford Fosgate T500-1bdCP - Power Mono Amplifier


Price:
£529.99

Description

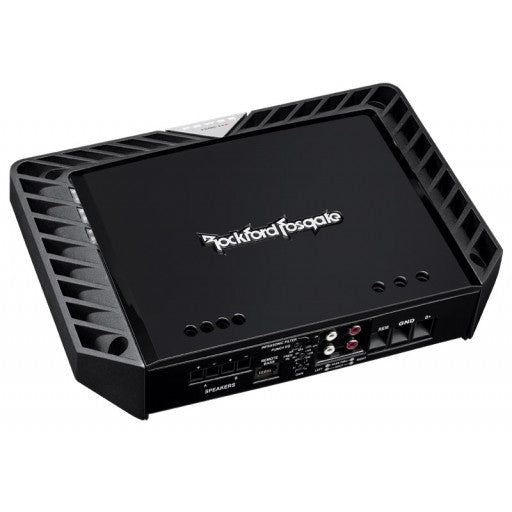

Rockford Fosgate T500-1bdCP Class-bd Power Mono Amplifier

The Power T500-1bdCP is a 500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T500-1bdCP is optimized exclusively for use with subwoofers.

Specification:

  • Number of Channels 1
  • Rated Power (RMS Continuous Power):
  • 300 Watts x 1 @ 4-Ohm
  • 500 Watts x 1 @ 2-Ohm
  • 500 Watts x 1 @ 1-Ohm
  • Total Power (Sum of Rated Power): 500 Watts RMS
  • Dynamic Power (PVC/PowerCube® Measurement):
  • 328 Watts x 1 @ 4-Ohms
  • 537 Watts x 1 @ 2-Ohms
  • 707 Watts x 1 @ 1-Ohm
  • Bridgeable: no
  • Efficiency (average):
  • 86.2% @ 4-Ohm
  • 82.3% @ 2-Ohm
  • 73.4% @ 1-Ohm
  • Crossover Controls:
  • Low-Pass (LP): 35Hz-250Hz @ 24dB/octave Butterworth
  • Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz
  • Tone Controls: Bass: 0dB to +18dB @ 45Hz
  • Signal Input: 1 RCA pair
  • Signal Output: 1 RCA pair
  • Power Input Connector: Block
  • Power Wire Gauge: 4 AWG
  • Speaker Output Connector: Screw terminal barrier strip
  • Speaker Wire Gauge: 8 AWG to 18 AWG
  • Heat Sink Type: Cast aluminum
  • Cooling: Convection
  • Remote Controls: Optional PEQ Remote Punch EQ (overrides built-in Punch EQ2)
  • Visual Indicators: Power (Blue LED), Thermal (Red LED), Protect (Yellow LED)
  • Circuit Topology Class: Class bd
  • Frequency Response: 20Hz to 250Hz +/-0.5dB
  • Dimensions (HxWxL): 2.14 x 8.14 x 11.41 (in)  / 5.44 x 20.68 x 28.97 (cm)
