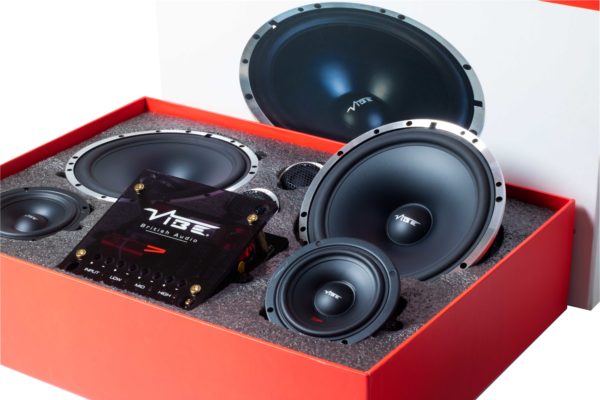

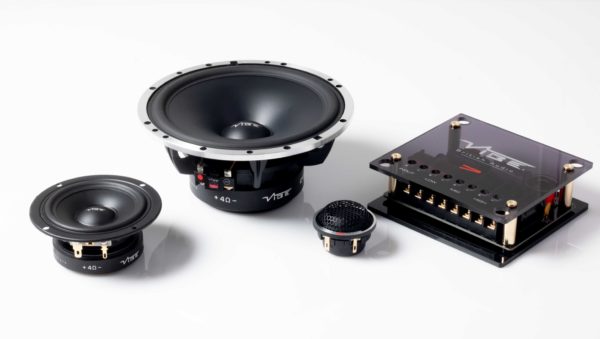

VIBE CVEN: 3 Way 6.5" Component Speaker Kit

VIBE CVEN: 3 Way 6.5" Component Speaker Kit

  • £374.99


The CVEN 6 has a wide and flat frequency response, enabling it to be common to both a two way and three way component kit. The midwoofer is designed to overcome the inherent problems of every loudspeaker design: distortion, power handling, dynamic response and efficiency. Vibe understand that the key to high quality audio reproduction is matching and
balancing the magnet, basket, voice coil, spider, cone and surround. With twenty two years of design experience we believe we have created our best sounding loudspeaker to date.

CVEN 6 FEATURES

• Aluminium field-stabilizing ring inside magnet assembly for reduced high-level distortion
• Vented voice coil former for reduced distortion and compression
• New vented chassis for lower air flow speed reducing audible distortion
• Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor system with 1.3” voice coil diameter and 90 mm magnet for better control, power handling, and efficiency
• Black magnet parts for better heat transfer to increase power handling
• Linear suspension with specially designed Conex damper (spider) for long durability under extreme operating conditions
• Gold plated terminals to prevent oxidation, for long-term reliable connection

CVEN 3 MIDRANGE

The 3.5” transducers were designed especially for high quality musical reproduction with particular attention to the all important vocal region.
These drivers were designed to perfectly compliment the CVEN 1 tweeter and CVEN 6 Midwoofer to create an unparalleled 3 way speaker system.

CVEN 3 FEATURES

• Vented voice coil former for reduced distortion and compression
• Vented chassis for lower air flow speed reducing audible distortion
• Voice coil wound with Copper Clad Aluminium Wire for higher efficiency and better dynamics
• Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
• Low-loss suspension (high Qm) for better reproduction of details and dynamics
• Black magnet parts for better heat transfer to increase power handling
• Progressive suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
• Gold plated terminals to prevent oxidation for long-term reliable connection

CVEN 1 TWEETER

The design with a 22 mm voice coil and wide surround delivers an extended bandwidth that would usually require multiple drivers to achieve Featured with a rear chamber these compact tweeters offer very low resonance frequency which further increases the tweeters ability to produce frequencies thought impossible by a driver of this size. In order to keep distortion and resonance frequency low the CVEN 1 Tweeter is designed around an external neodymium ring magnet in order to allows for a larger internal volume than that of traditional neodymium tweeters providing improved frequency response.

CVEN 1 FEATURES

• 22 mm design for optimal compromise between on- and off-axis frequency response, resonance frequency, and power handling
• Rear chamber for low resonance frequency and reduced distortion
• Outside ring neodymium magnet for lower resonance frequency and distortion
• Precision-coated textile diaphragm for improved consistency and high-frequency extension Optimized dome shape for ultra high frequency cutoff Vented voice coil former for reduced distortion and compression
• Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
• Build-in cavities under dome/edge to equalize pressure for lower distortion and lower resonance frequency
• Flexible lead wires for higher power handling and larger excursion
• Gold plated terminals to prevent oxidation and ensure long-term reliable connection

  • Model CVEN62C- V4
  • Type Component
  • Configuration 3-way
  • Speaker Size 6.5” (165mm)
  • RMS Power 130 watts
  • Peak Power 260 watts
  • Minimum Input (RMS) 65 watts
  • Sensitivity 91dB
  • Frequency Response 45Hz - 20kHz
  • Impedance 4Ω
  • Mounting Depth 2.9” (73mm)
  • Mounting Diameter 5.6” (143mm)
  • Recommended Amp CVENC6-V4
