Vw TRANSPORTER T5-5.1
100% PLUG N PLAY speaker upgrade package.
As we all know being Transporter owners, the factory speaker system is very poor. Most models have no tweeters in the dash, and the coaxial in the door are terrible.
This kit will transform the sound experience. And make your van a much more enjoyable space to be in.

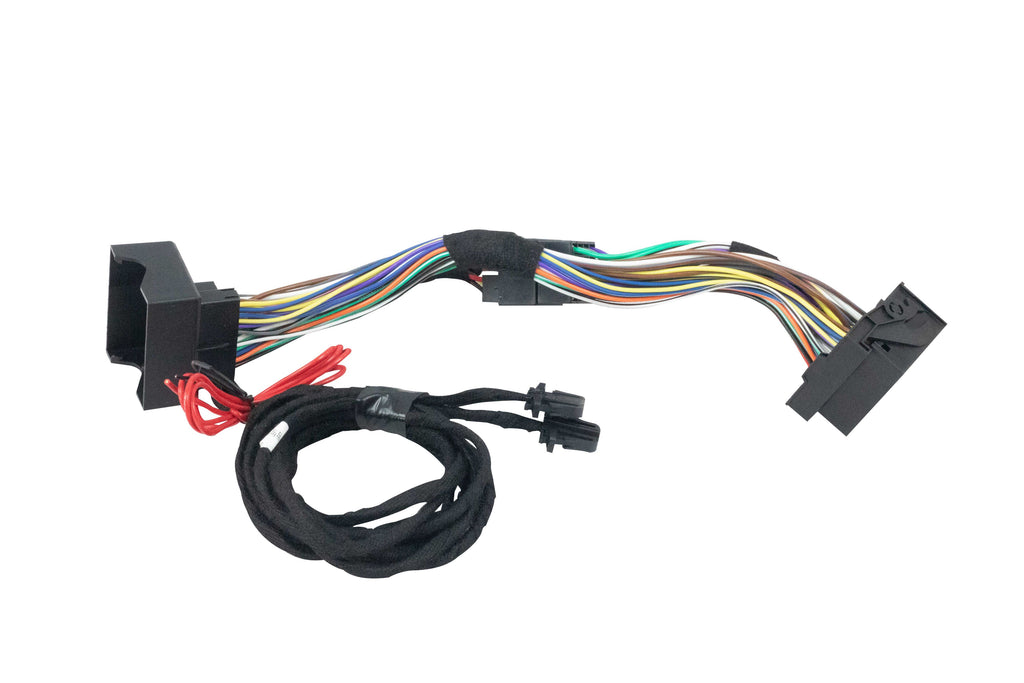

Our modified T harness loom supplied in the kit plugs Inline between the factory stereo or after market stereo and the factory quad lock connector.

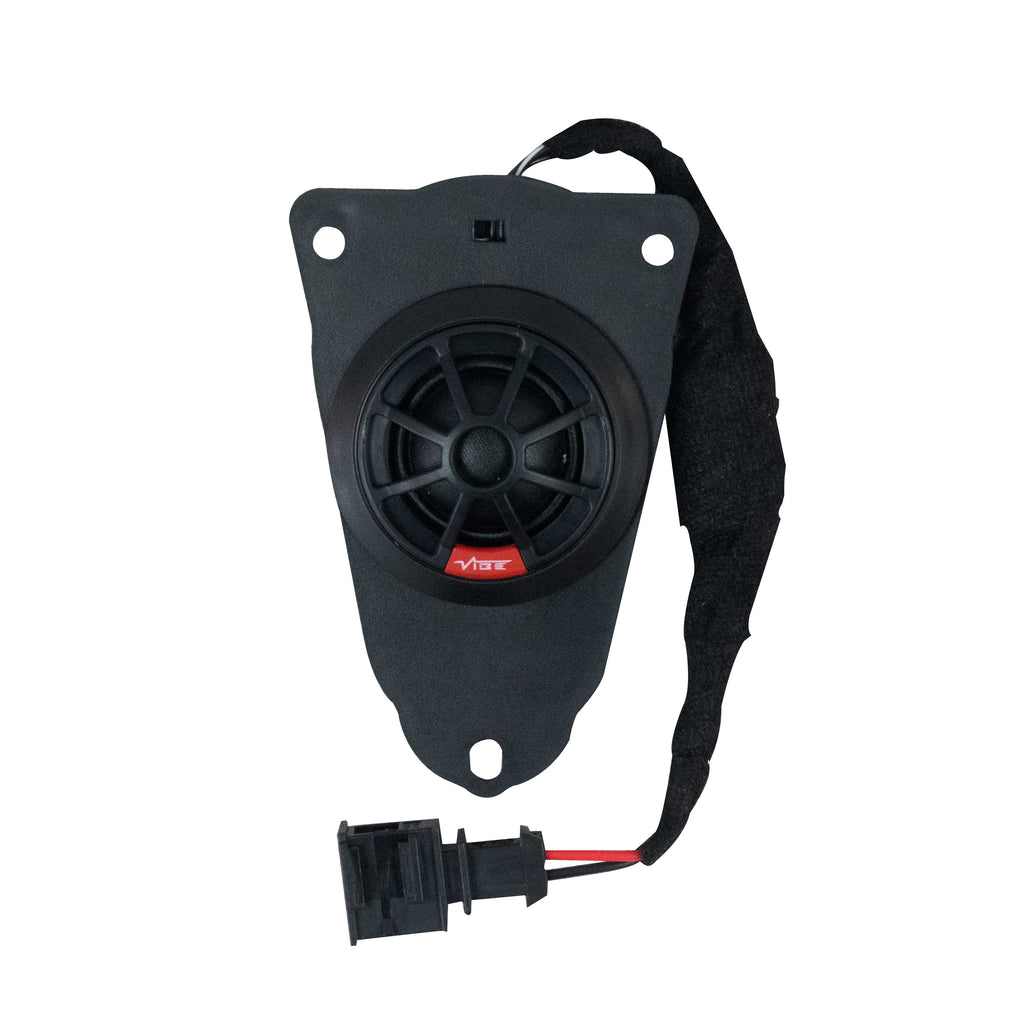

You then run the 2 tweeter cables up through the dash up to the grill top left and right. Where you will mount the new ABS tweeter plate with the tweeter and crossover attached, with the supplied screws.

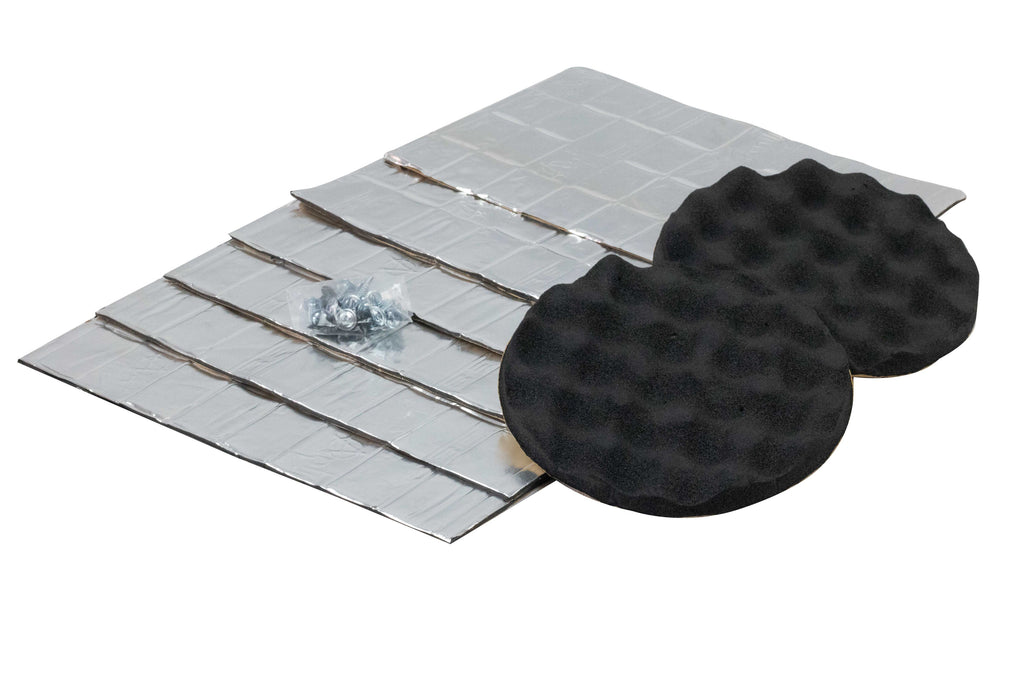

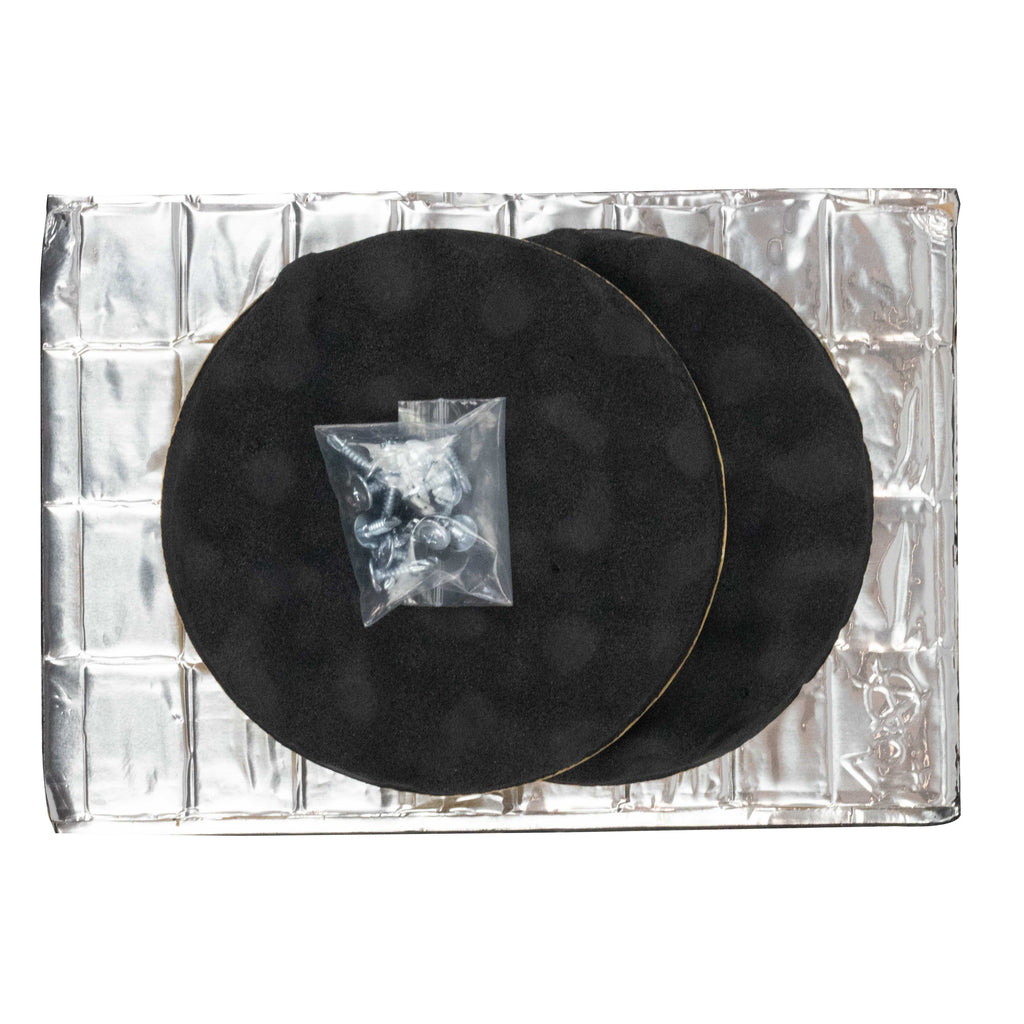

Next you will remove the door cards and remove the old door speakers. Then fit the supplied 4 sheets VIBE ANTIVIBE sound deadening (2 per door) as well as the VIBE foam back wave diffuser.

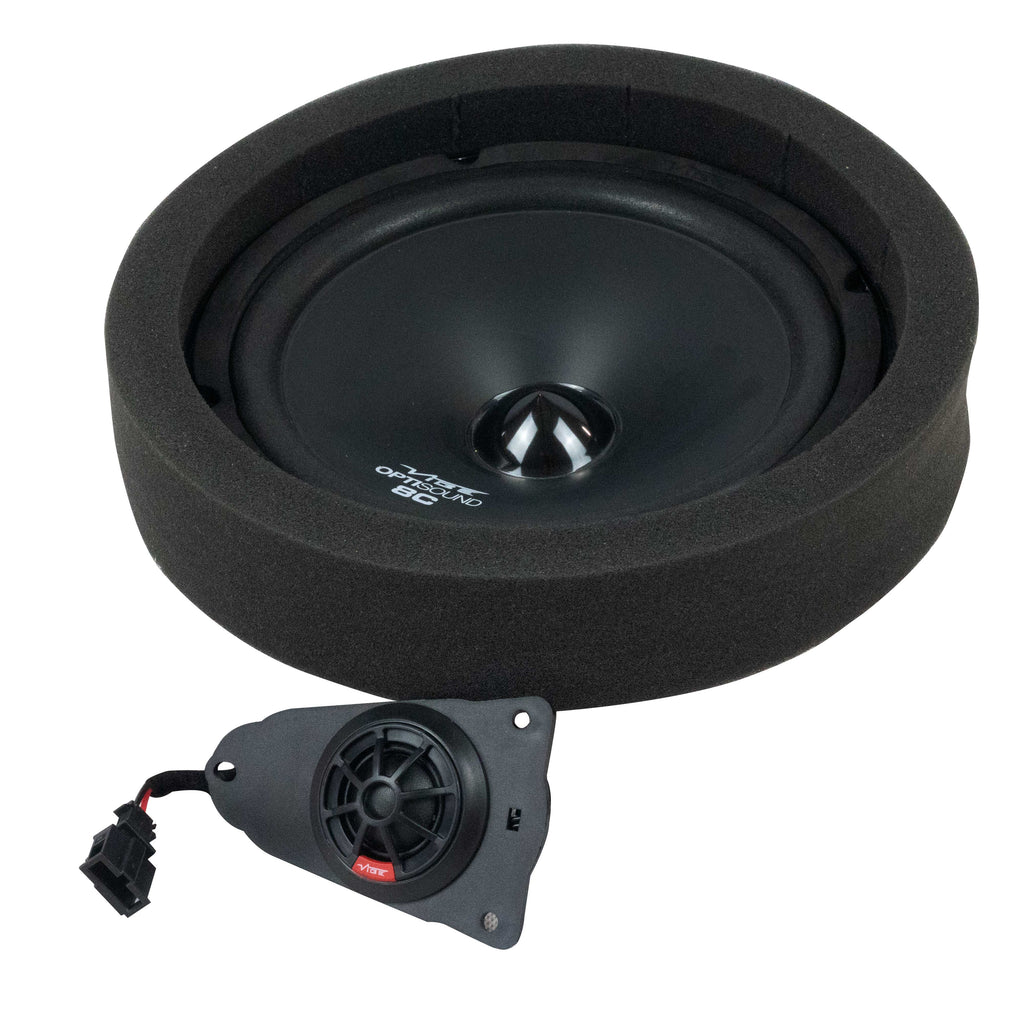

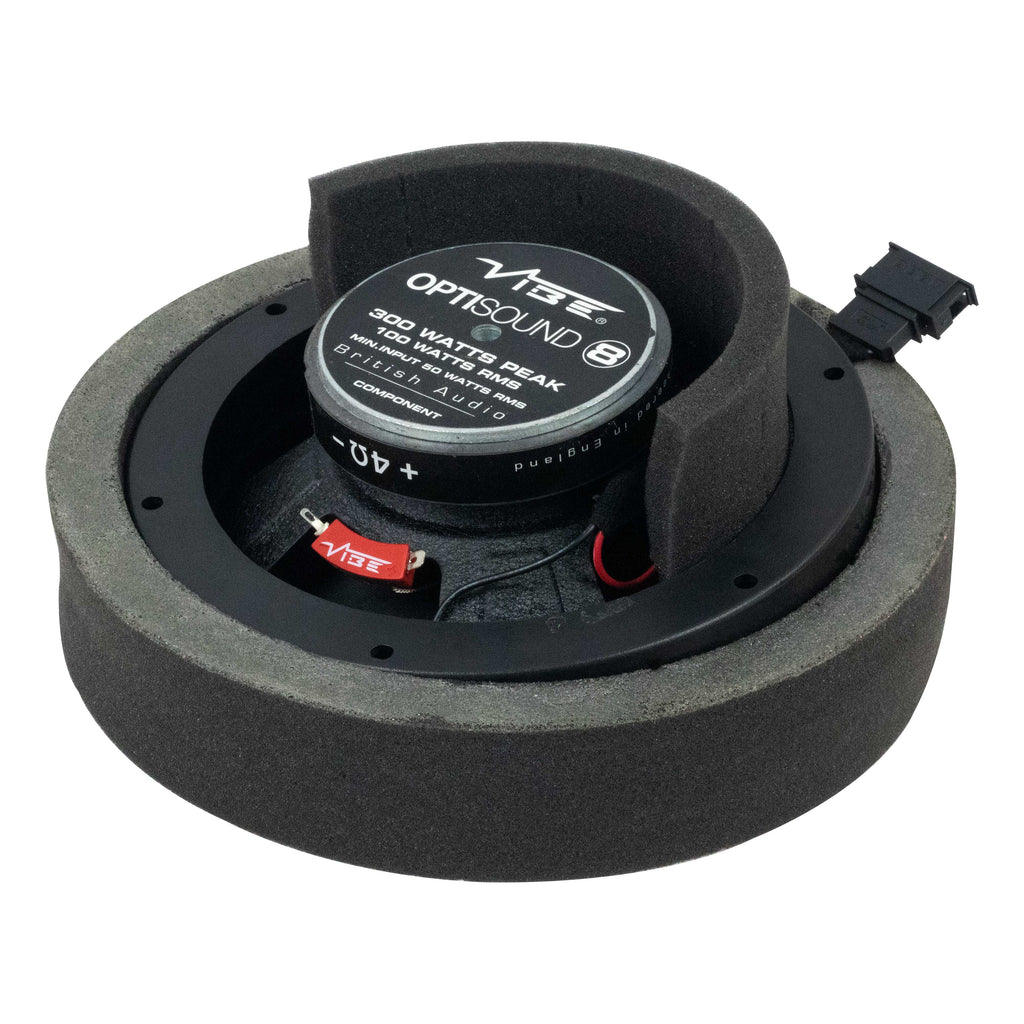

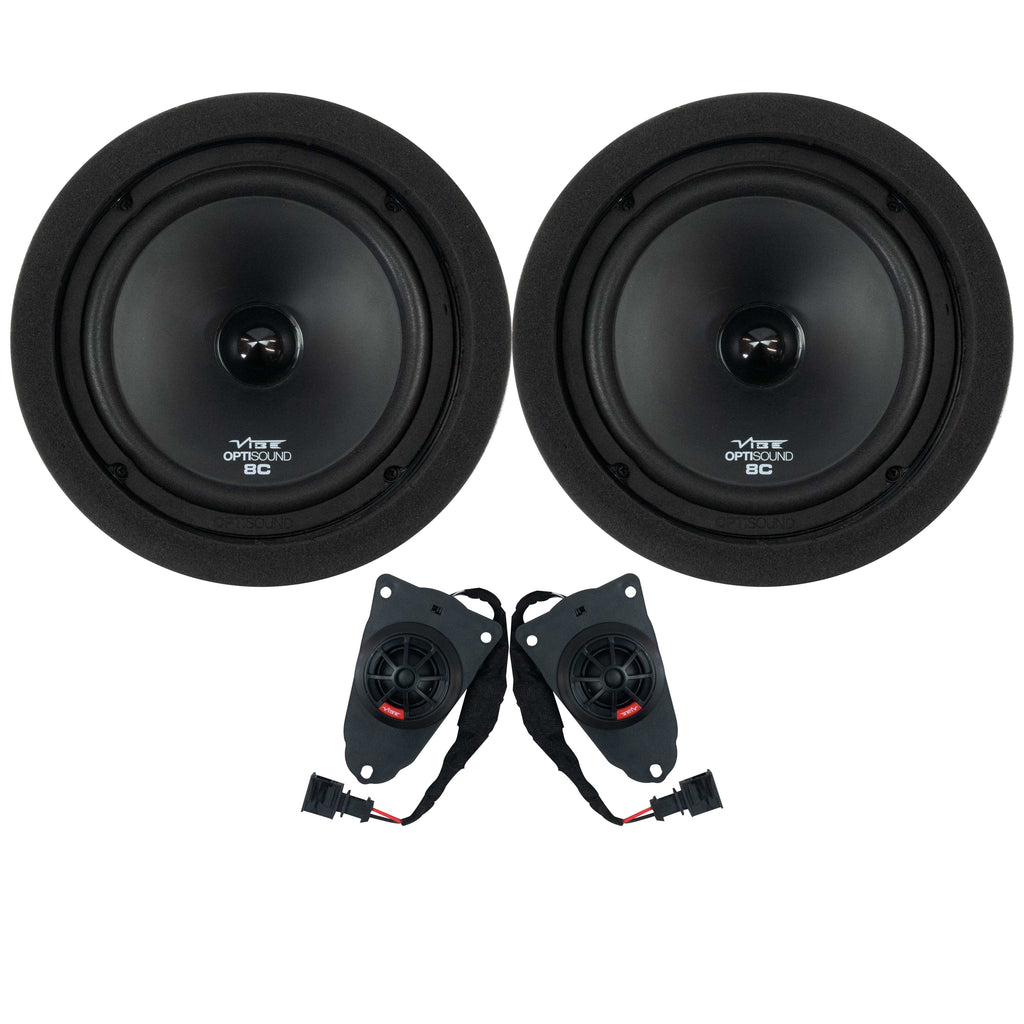

Then fit the pre assembled 8” speaker, mounted on the ABS mounting adapter with rain guard and fast ring. Using the supplied fixings. This then plugs into the factory speaker plug.
NO CHOPPING OF ANY WIRING!!
100% PLUG AND PLAY KIT.
HIGH QUALITY Components.

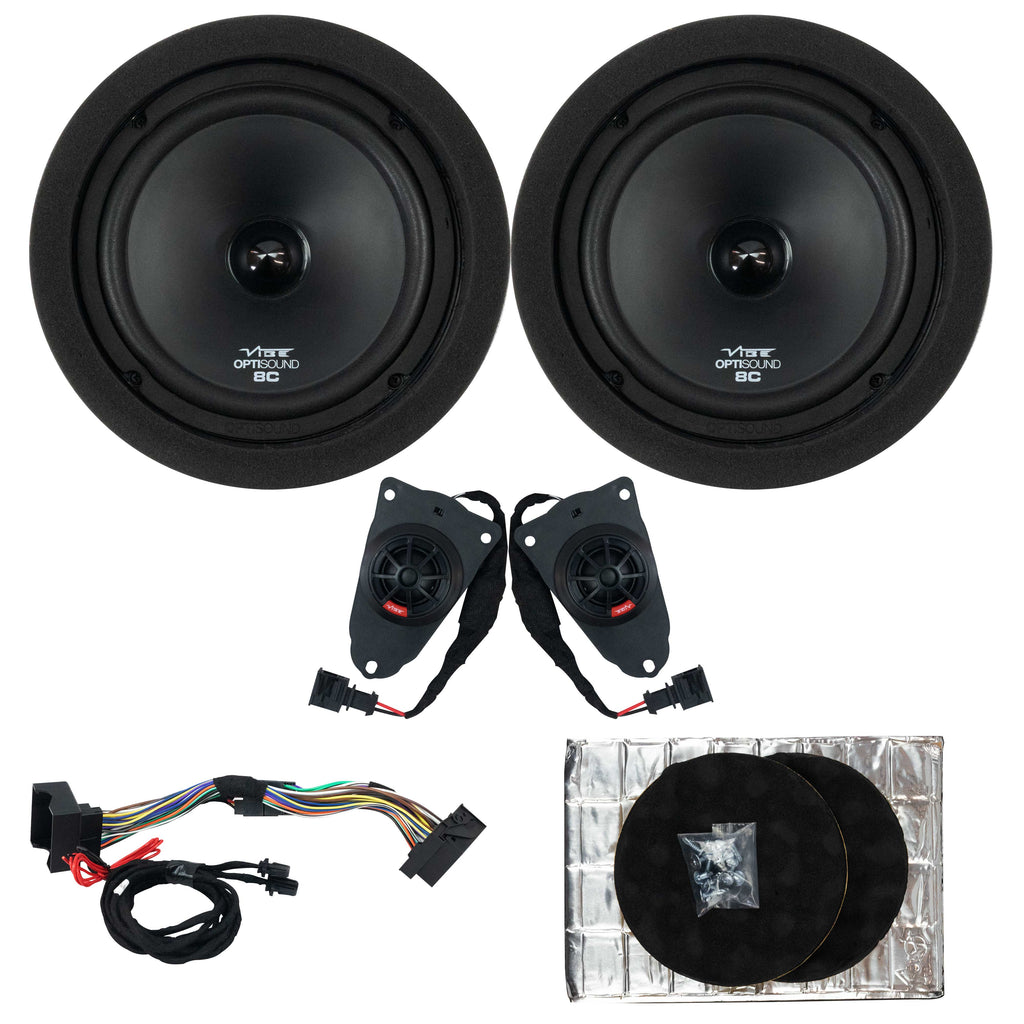

Kit INCLUDES :
- Crown Customs T HARNESS adapter cable
- 2 x Crown Customs ABS tweeter plates
- 2 x 8” speaker adapters with custom rain guard and fast ring.
- 2 x VIBE back wave foam pads
- 8 x Sheets of VIBE Antivibe sound deadening
- 2 x Tweeters with crossovers

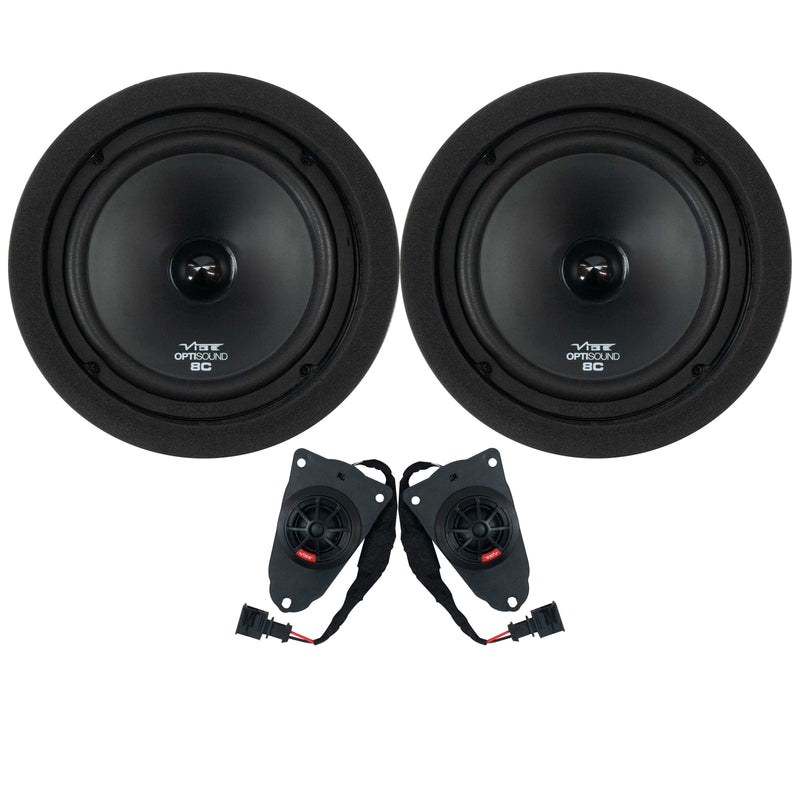

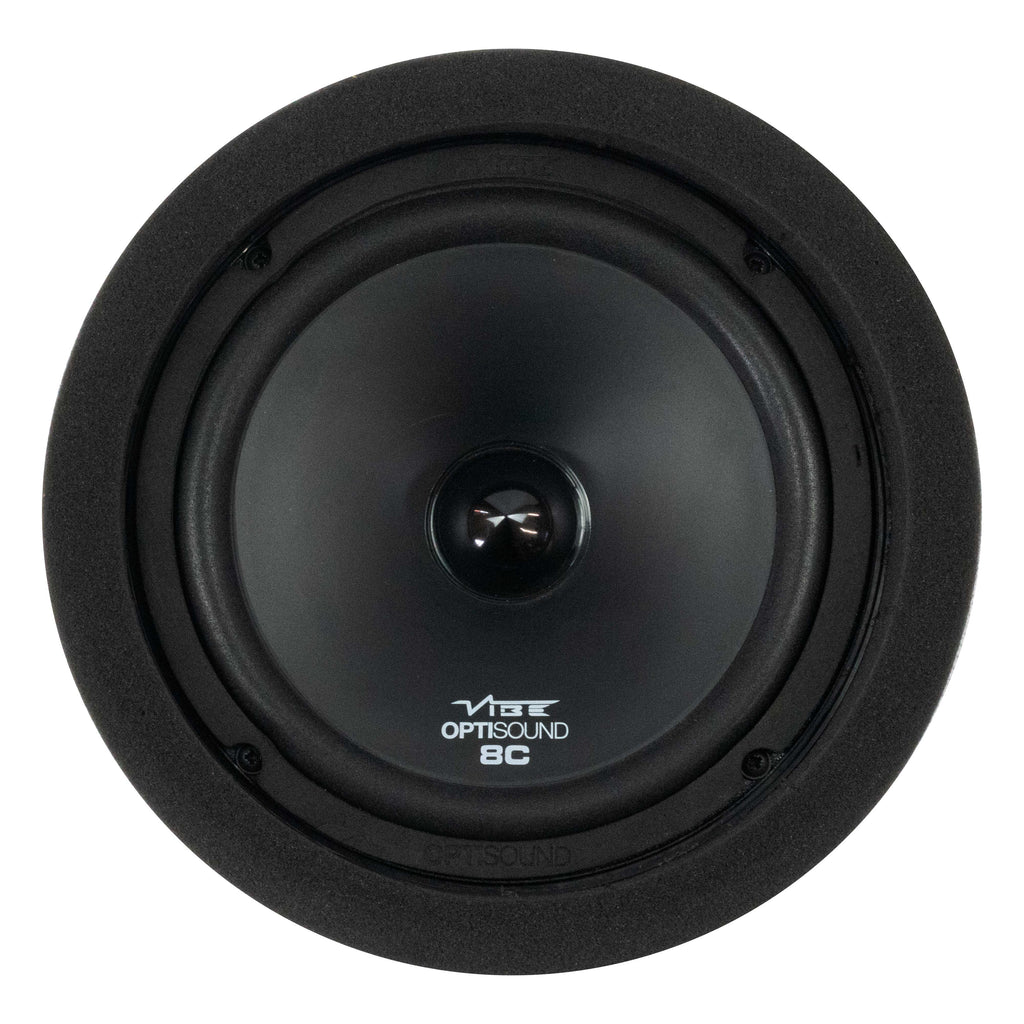

- 2 x 8" VIBE OPTISOUND speakers
- 1 x VIBE micro 65.4m Amplifier
- 1 x amplifier wiring loom
- Bag of fixing screws
- Technical support
- Foam gaskets
- Peak/RMS Power – 360W/120W
- Sensitivity – 90dB
- Frequency Response – 50Hz – 20kHz
- Impedance – 4Ω
- Mounting Depth – 2.4” (61mm)
- Diameter of midwoofer or midrange – 8"
- 2-way component speaker system
- HQPP cone
- Rubber surround
- Resonance free steel basket
- 19 mm / 0.75″ soft dome tweeter
- Amplifier 4 x 65w RMS
