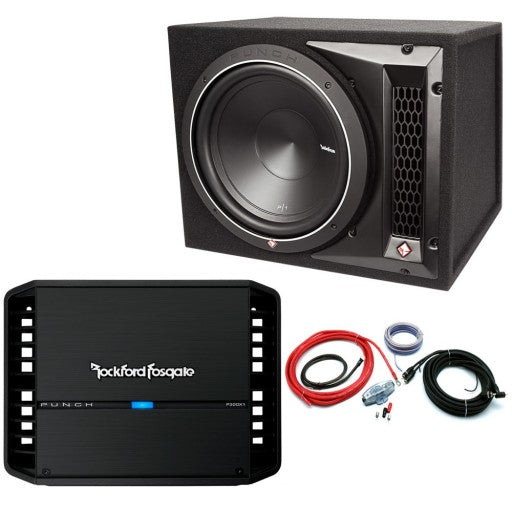

Rockford Fosgate Punch 12" Enclosure Mono Bass Package (P1-1X12 & P300X1)

• Package includes:
• Rockford Fosgate Punch P1-1X12 - Single P1 12” 500 Watt Loaded Enclosure
• Rockford Fosgate Punch P300X1 - 300 Watt Mono Amplifier
• 8 Gauge Wiring Kit

ROCKFORD FOSGATE P1-1X12

The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We're not talking junk in the trunk, we're talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8" MDF and tuned by our computer aided design software. P1 Loaded Enclosures feature similar tonal performance as P2 & P3 models, but are easier to move in-n-out of vehicles due to their lighter weight.

• Constructed with 5/8" MDF
• Proprietary high-flow, low-noise port
• High current binding posts

Specifications:

• Woofer Size: 10"
• Woofer Series: Punch P1 (P1S4-12)
• Nominal Impedance (ea): 4-Ohm
• Internally wired to create a 4-Ohm amplifier load
• Power Handling: 250 Watts RMS / 500 Watts Max
• System Configuration: Vented
• Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
• Speaker Connector: Up to 10 AWG compression terminals
• Shipping Weight: 46.1 Lbs. (20.91 kg)
• Dimensions: 15.125" x 19.125" x 15.75" (38.4cm x 48.6cm x 40cm)

The P300X1 is perfect for use as a dedicated subwoofer or center channel amplifier. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want! Now, thanks to its small chassis design, it will also fit where traditional amplifiers cannot.

• High level input capable with Auto Turn-On circuit
• RCA pass-thru outputs
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• 12dB/octave Butterworth crossover
• On-board Punch EQ with +18dB boost @ 45Hz.
• Muted turn on
• Stealth top mounted control panel
• Cast aluminium heatsink
• Short circuit protection
• Over current protection

Specification:

• Number of Channels: 1
• Rated Power(RMS Continuous Power):
• 200 Watts x 1 @ 4-Ohm
• 300 Watts x 1 @ 2-Ohm
• Total Power (Sum of Rated Power): 300 Watts
• Dynamic Power (PVC/PowerCube® Measurement):
• 260 Watts x 1 @ 4-Ohms 0° Res
• 444 Watts x 1 @ 2-Ohms 0° Res
• Frequency Response: 20Hz to 20kHz +/- 1.0dB
• Efficiency (average): 74% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise):
• 4-Ohm: <1.0%
• 2-Ohm: <1.0%
• Crossover Controls: High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
• Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
• All-Pass: Yes
• Tone Controls: Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
• Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
• Function depends upon LP/AP/HP switch position
• Input Sensitivity: 150 mV - 12 V
• Signal Input: Hi/Low level: 1 RCA pair
• Signal Output: Low Level: 1 RCA Pair
• Power Input Connector:     Captive C-Clamp
• Power Wire Gauge: 8 AWG to 4 AWG
• Speaker Output Connector: Captive C-Clamp
• Speaker Wire Gauge: 8 AWG to 18 AWG
• Heat Sink Type: Cast aluminium
• Cooling: Convection
• Remote Controls: Optional Punch Level Control (PLC2) Ready
• Visual Indicators: Power/Protect/Thermal LED
• Input Clip LED
• Output Clip LED
• Circuit Topology Class: Class-A/B
• Operating Voltage: 9 - 16 VDC
• Recommended Fuse (not included): 50 A
• Max. Current Draw (13.8V Sinewave): 45 A
• Average Current Draw (13.8V Music): 23 A
• Suggested Alternator:     75 A
• Shipping Weight: 9.5 Lbs. (4.30 Kg.)
• Dimensions (HxWxL): 2.38 x 7.76 x 9.86 (in) / 6.05 x 19.71 x 25.04 (cm)
